Bio-Sil® Precision Tubing

#SGN05

Product Description

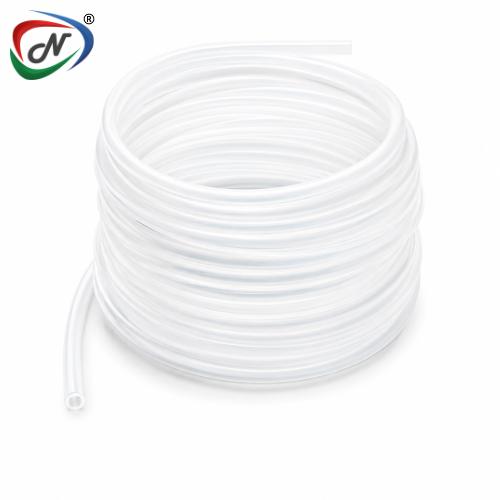

Bio-Sil® Precision Tubing

Bio-Sil® Precision silicone tubing has been expertly crafted by the material specialists at Saint-Gobain Medical, specifically designed for medical pumping applications. The Bio-Sil range is the culmination of years of expertise in material science, extensive industry experience, and advanced manufacturing techniques. As a member of our silicone product family, Bio-Sil Precision has been engineered to enhance the pumping performance of silicone tubing, while ensuring a level of repeatability and consistency that is unmatched by other pump tubing. The formulation of the material is meticulously controlled to minimize variations in its physical properties. Upon request, we can provide an 8-point wall thickness measurement, allowing for high concentricity tubing.

Main Features:

Platinum-cured tubing.
53 Shore A hardness.
Autoclavable, stable in EtO and gamma radiation.
Temperature range from -80°F (-62°C) to 500°F (260°C).
The raw material for the tubing complies with USP Class VI standards.
Exceptional dosing accuracy in peristaltic pumps.

Main Specifications:

Property	ASTM Method	Value or Rating
Durometer Hardness (Shore A)	D2240	53
Tensile Strength, psi	D412	1500
Ultimate Elongation, % D412 750	D412	750
Modulus @ 100% Elongation, psi D412 230	D412	230
Tear Strength, ppi	D1004	190
