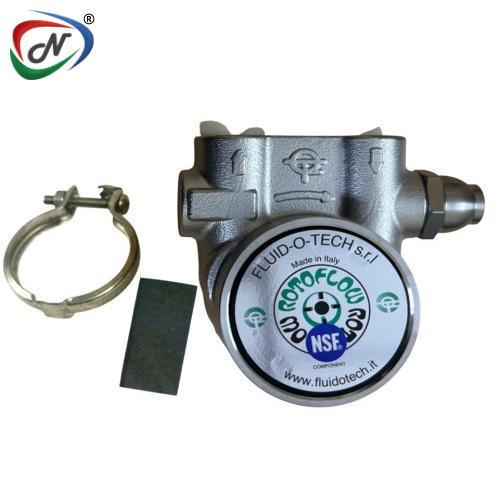

PA0251BHEFN2000 -PA2511 S.S. Pump with Female shaft

#NSSP007695

Product Description

PA0251BHEFN2000 -PA2511 S.S. Pump with Female shaft

Rotary Vane Pump: 250 L/H at 1450 Rpm
Stainless Steel Housing
Clamp Mount

Main Applications:

Carbonation & Beverage
Espresso/Coffee
Welding
Beer Chillers & Cold Carb Circulation
Reverse Osmosis
Medical Devices & Application
Solar Applications
Cooling Systems
Circulation
Pesticide Systems
X-Ray & CT Scanner
Misting & Humidification Systems
Soda Machines
Laser machines

The PO 70-400 series positive displacement rotary vane pumps are offered with either brass or stainless steel housings, featuring 3/8” GAS or NPT ports along with an internal relief valve.

The nominal flow rates for these pumps range from 70 to 400 l/h at 1450 rpm. Additionally, any pump within this series can also be operated at 1725 rpm, yielding approximately 20% more capacity, with a maximum output of 530 l/h.

The maximum discharge pressure for this series is 16 bar (230 psi). These pumps can be directly mounted to NEMA 48Y motors using a v-band clamp, and to M71, M80 IEC, and NEMA 56C motors through an adapter and appropriate coupling.

MAIN APPLICATIONS

SODA CIRCULATION
COOLING SYSTEMS
BOOSTER SYSTEMS
WATER TREATMENT

PO 200 SERIES VANE PUMPS
TECHNOLOGY	Rotary Vane Pumps
FLOW RATE (MIN)	100 l/h
FLOW RATE (MAX)	450 l/h
DIFFERENTIAL PRESSURE (MAX)	16 bar
STATIC PRESSURE (MAX)	20 bar
