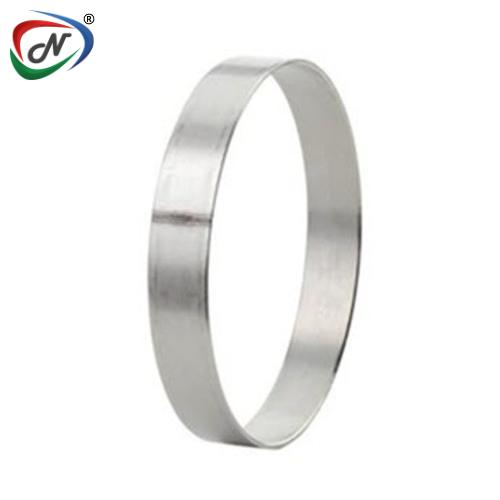

Multi Crimp Rings Cross Welded 250
#CLAMPOET5
Product Description
Multi Crimp Rings Cross Welded 250
- Comprehensive material cross-section spanning 360°: Uniform
pressure exerted consistently around the entire circumference ensures a
leak-proof seal.
- Adaptable diameter reduction: Elevated, adjustable surface
pressure facilitates straightforward installation.
- Compact assembled height: Minimal spatial requirements,
preventing imbalance in rotating components and lowering the risk of damage to
adjacent parts.
- Uniquely shaped strip edges: Diminished likelihood of harm
to the components being secured.
Main Benefits:
- Maximized space efficiency
- Ideal continuous sealing with no leaks
- Installed with high efficiency and reliability
- Exceptional resistance to pressure and expansion
Material
- 250 Stainless
Steel, material no. 1.4307/UNS S30403
Series
|
|
15.0 – 120.5 mm |
Dimensions:
|
Band width |
Band thickness (mm) |
Diameter range* (mm) |
|
7.0 |
0.8 |
15-40 |
|
7.0 |
1.0 |
19-80 |
|
8.0 |
0.8 |
15-50 |
|
8.0 |
1.0 |
19-80 |
|
10.0 |
0.8 |
15-120.5 |
|
10.0 |
1.0 |
20-120.5 |
|
10.0 |
1.2 |
45-120.5 |
|
14.0 |
1.2 |
45-120.5 |
* Further dimensions upon request.
Click to download : Oetikert_tds_250_MCR_Cross Welded Catalogue Click to download : Success_Story_EV_Thermal_Management_MCR_250 Click to download : Success-Story_PV_Cooling_MCR-250Medical (Core) & Thermal Industry
Various Industry Products
Additional Information
| NESPL Code | CLAMPOET5 |
| Manufacturer Code | 250 |
| Manufacturer | Oetiker |
| Type | Clamps |
