StepLess® Low Profile Clamps 192
#CLAMPOET7
Product Description

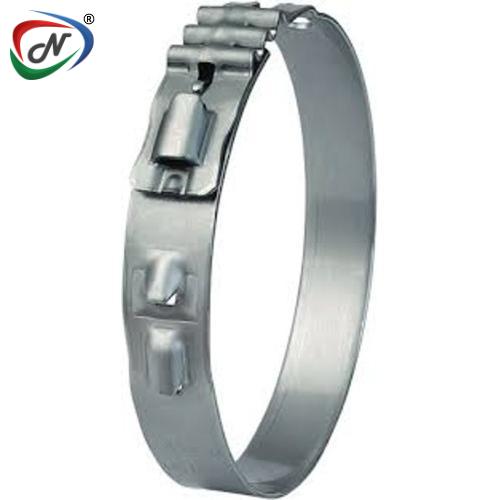

StepLess® Low Profile Clamps 192
Oetiker StepLess® Low Profile Clamps 192 are designed with
1-wave and 3-wave tolerance compensation elements. The dimensions of the
materials used in the standard range are determined by considering the
necessary radial force, the specific application, and the requirement to
maintain sealing and/or retaining capabilities under defined conditions and
environmental exposure. When choosing the clamp diameter, it is essential to
accurately measure the dimensions of the mating components where the clamp will
be installed to ensure optimal clamping performance. Additionally, the
durometer hardness of the softer material and the desired level of compression
are critical factors in determining the suitable clamp diameter.
Main Features:
- Tolerance compensation elements: accommodate
discrepancies in component tolerances.
- 360° StepLess®: consistent 360° compression and
uniform surface pressure.
- Low installed height: minimal space requirement,
resulting in reduced imbalance in rotating components.
- Innovative tensioning hook design: enables quick and
easy installation with significant radial force.
- Uniquely shaped strip edges: lower likelihood of
damage to clamped components.
Main Benefits:
- Space-efficient
- Excellent sealing performance
- Compensation of component tolerances
- Fast and easy installation
- High Process Reliability
Main Specifications:
Material:
- 192 Stainless
Steel, material no. 1.4301/UNS S30400
Series:
|
Nominal diameter |
Width × Thickness |
Total Element |
|
19.5 – 60.0 mm |
10.0 x 0.8 mm |
1-wave |
|
40.0 – 120.5 mm |
10.0 x 0.8 mm |
3-waves |
Click to download : oet_tds_192_Low_Profile_Clamps Catalogue Click to download : Oetiker_eMobility_Product_Brochure Click to download : Oetiker_Thermal_Management_BrochureMedical (Core) & Thermal Industry
Various Industry Products
Additional Information
| NESPL Code | CLAMPOET7 |
| Manufacturer Code | 192 |
| Manufacturer | Oetiker |
| Type | Clamps |
