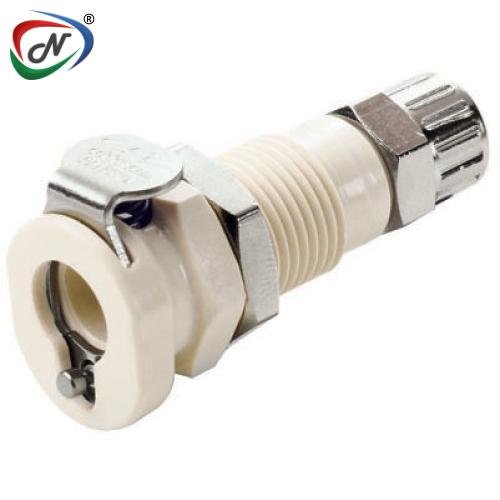

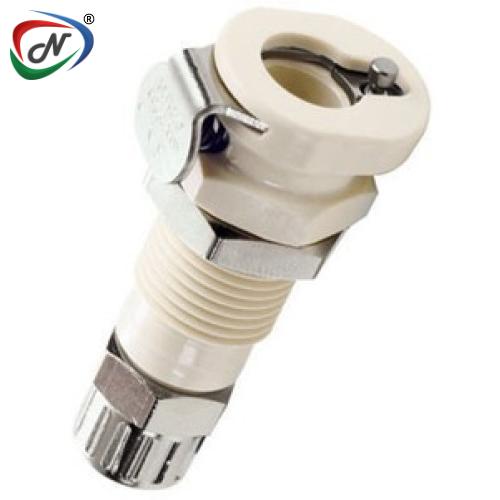

PMC120412NA 1/4 PTF Non-Valved Panel Mount Polypropylene Coupling Body Nut Assembled

#NSSP006596

Product Description

PMC120412NA 1/4 PTF Non-Valved Panel Mount Polypropylene Coupling Body Nut Assembled

Main Features:

Polypropylene
EPDM o-ring
Colder thumb latch
Integral terminations

Main Benefits:

Chemically resistant and gamma sterilizable
Greater chemical resistance
One-hand connection and disconnection
Fewer leak points, shorter assemblies, faster installations

Main Specifications:

Material: Polypropylene

Material Finish: Almond

Color: Almond

Mounting Option: Panel Mount

Sterilization Method: Gamma: Up to 50 kGy irradiation

Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM

Valve Option: Non-Valved

Body Type: Bodies

Bag Qty: 25

COUPLING BODIES - Polypropylene

TERMINATION	PANEL MOUNT FERRULELESS POLYTUBE FITTING, PTF†
TUBING/THREAD SIZE	1/4" OD, 0.17" ID
METRIC EQ.	6.4mm OD, 4.3mm ID
STRAIGHT THRU	PMC120412
SHUTOFF	PMCD120412
A (Height/Diameter)	0.79 (20.1)
B (Total Length)	1.72 (43.7)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless PTF (polytube fitting) terminations do not require ferrules to achieve a secure connection and are therefore easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
