PMC2203 -3/16 Hose Barb Non-Valved In-Line Acetal Coupling Insert
#NSSP003409
Product Description
PMC2203 -3/16 Hose Barb Non-Valved In-Line Acetal Coupling Insert
Main Features:
- Hose
barb shroud
- Integral
terminations
- Compatible
- Clicks when connected.
Main Benefits:
- Extra
protection for the 1/16" hose barb
- Fewer
leak points, shorter assemblies, faster installations
- Mates
with PMC12 and MC Series coupling
- Assurance of a reliable connection
Main Specifications:
- Material: Acetal
- Material
Finish: Natural
- Color: White
- Mounting
Option: Free Floating
- Temperature
Range: -40°F - 180°F (-40°C - 82°C)
- Seal
Options: BUNA-N
- Valve
Option: Non-Valved
- Body
Type: Insert
- Bag Qty: 250
COUPLING INSERT – Acetal
TERMINATION | IN-LINE HOSE BARB (NON-VALVED SHOWN) |
TUBING SIZE | 3/16" ID |
METRIC EQ | 4.8mm ID |
STRAIGHT THRU | PMC2203 |
SHUTOFF | PMCD2203 |
A (Height/Diameter) | 0.5 (12.7) |
B (Total Length) | 1.20/1.88 (30.5/47.8) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

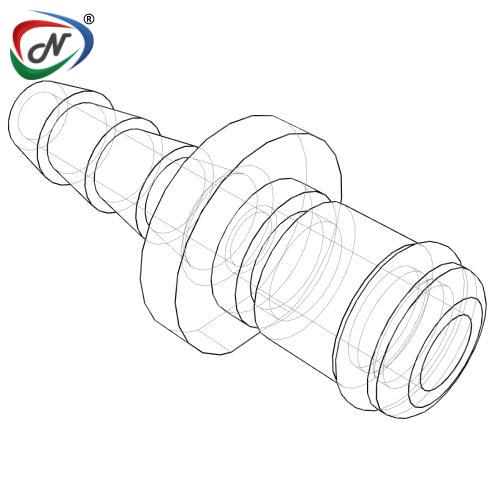

Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003409 |
| Manufacturer Code | PMC2203 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.001kg |
| Type | Quick Fittings |
